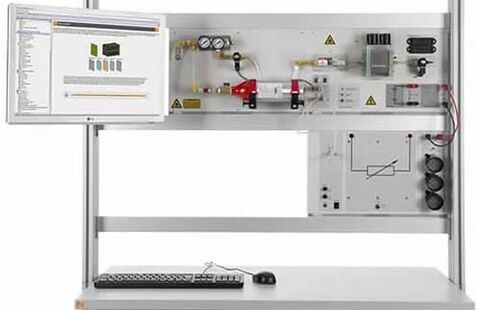

EHY 2 ADVANCED FUEL CELL TECHNOLOGY
The generation of electrical energy using fuel cells continues to develop into a significant area with diverse application potential in electrical engineering and automotive technology. The training panel system permits a safe experimenting environment in connection with hydrogen and fuel cells. At the same it permits interesting investigations and is well suited for both practical lab work as well as demonstrations. Animated theory, experiment guidelines and information including results are supplied using the “Interactive Lab Assistant”.
Training content
- Design and operation of a fuel cell
- Design and operation of an electrolyser
- Design and operation of a metal hydride storage cell
- Thermodynamics of the fuel cell
- Characteristics and power curves of the fuel cell
- Efficiency
- Required systems for standalone power supply
- Power electronics and voltage conversion
| Basic equipment set, consisting of: | ||||
|---|---|---|---|---|
| 1 |  | Fuel cell with DC converter | CO3208-6G | |
| 1 |  | Electronic load 200W/20V/10A | CO3208-6H | |
| 1 |  | Metal hydride storage cell with solenoid valve | CO3208-6J | |
| Media: | ||||
|---|---|---|---|---|
| 1 |  | Interactive Lab Assistant: Fuel cell technology – Advanced course | SO2800-6B | |
| Accessories: | ||||
|---|---|---|---|---|
| 6 |  | Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II | SO5126-3R | |
| 3 |  | Safety measurement cable 4mm, 50cm/20″, red, 600 V CAT III ~ 1000 V, CAT II / 32 A | SO5126-8K | |
| 3 |  | Safety measurement cable 4mm, 50cm/20″, black, 600V CAT III ~1000V CAT II / 32A | SO5126-8L | |
| 1 |  | Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm) | ST7200-4C | |
| Additionally recommended: | ||||
|---|---|---|---|---|
| 1 |  | Monitor holder for flat screen monitor of weight up to 15kg/33lbs | ST8010-4T | |
| 1 |  | Keyboard adapter for flat screen monitor holders | ST8010-4G | |
| 1 |  | Display for Hydrogen equipment | ST8000-4Q | |
| 1 |  | Protection cover for three-level experiment trolleys | ST8010-9Y | |
