EPE 42-1 SERVO DRIVE TECHNOLOGY, PMSM AND BLDC MOTOR 1KW

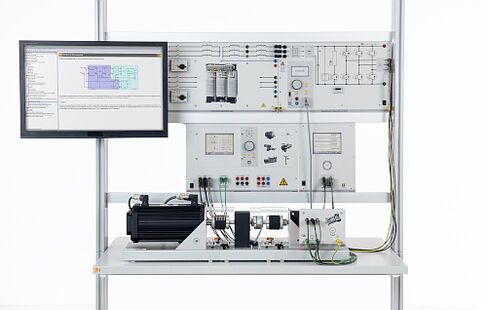

Servo drives are variable-speed drives designed to meet high dynamic response and overload demands. They are frequently deployed in automation solutions subject to radical speed and torque variations, such as tooling machines or robotic systems. The “Servo drive technolgy“ training system clearly demonstrates the functionality of a variable-speed servo system with permanent magnet.

Training contents:

Design of the servo drive
Investigating the coordinate and encoder systems
Operating principle of servo motors with electronic commutation
Modulation analysis
Control structure design
Analysis of speed-variable drives

Supplementary equipment set for EPE 40-1 – Self-commutated converters, consisting of the following:
1	Permanent Magnet Synchronous Motor (PMSM) 1kW	SE2682-5S
1	Incremental position encoder 1024 pulses, 1 kW	SE2683-5T
1	Coupling guard with LED lighting for 1kW machines	SE2662-7D
1	Rubber coupling sleeve for 1kW machines	SE2662-6A

Media:
1		Interactive Lab Assistant: Servo motors, electronically commutated motors 1 kW		SO2805-2M

Measuring instruments:
1		Power-Multimeter		CO5127-2A

Additionally required, dynamic servo machine test stand:
1	Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)	CO3636-6Y
1	Rubber coupling sleeve for 1kW machines	SE2662-6A
1	Coupling guard with LED lighting for 1kW machines	SE2662-7D

Accessories:
1	Set of safety measurement cables, 4mm, 31 pcs	SO5148-1L
20	Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II	SO5126-3R
2	Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II	SO5126-3V
2	Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II	SO5126-3W
1	Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)	ST7200-4C
1	Protected power distribution for working stations	ST8008-8N
1	Monitor holder for flat screen monitor of weight up to 15kg/33lbs	ST8010-4T
1	Keyboard adapter for flat screen monitor holders	ST8010-4G
1	Protection cover for three-level experiment trolleys	ST8010-9Y
