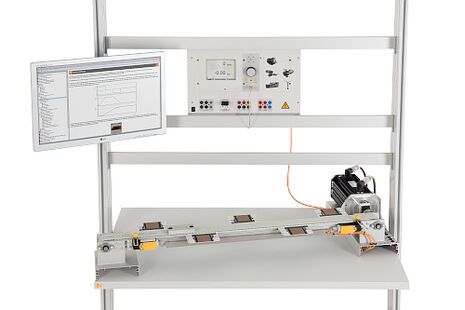

EDT 33-3 Positioning with linear axis 300W

The focus of this training system is on practical hands-on learning of how modern positioning drives function and operate. The servo-machine testing system is operated as a positioning drive on a linear axis. Using software designed for education, students can explore hands-on how the positioning
drive operates in the context of project work.

Training objectives:

• Computer-aided commissioning and parameterisation of a positioning drive with linear axis
• Positioning and sequence control
• Setting parameters using special training software
• Referential travel function
• Investigating the effects of various controller settings
