EMW 20 ELECTRICAL MACHINE WINDINGS

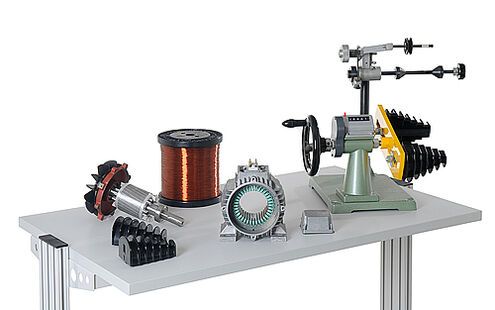

This training system takes a hands-on approach to teach how a three-phase motor with a squirrel-cage rotor is constructed. It is possible to put together a completely functional motor, the response of which can be investigated with the aid of a machine test stand.

Training objectives:

Electrical and mechanical assembly of a motor
Determining winding data
Making windings
Insertion and connection of windings
Standard operational testing for motors
Connection, wiring and commissioning
Recording speed-torque response

Basic equipment set, consisting of:
1		Construction kit for three-phase motor on iron core with no winding		SE2670-3H
1		Material for “Three-phase motor windings” kit, to build 10 motors		SE2670-5F

Media:
1		Manual EMW 20, Assembly of a three-phase motor with squirrel cage rotor		SH5002-1X

Measuring instruments:
1	Insulation tester “Insu 10”	LM2333
1	Power-Multimeter	CO5127-2A
1	Multi13S digital multimeter	LM2330

Accessories:
1	Miniature winding machine with hand crank, including winding templates	LM8525
1	Set of tools for “Electrical machine windings”	SE2670-4D
1	Set of tools “Electric I”	SE2670-4A
1	Set of safety measurement cables, 4mm, 31 pcs	SO5148-1L
15	Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II	SO5126-3R
2	Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II	SO5126-3V
2	Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II	SO5126-3W
1	SybaPro mobile lab trolley with plug board, (1250 x 760 x 700 mm)	ST7200-3D
