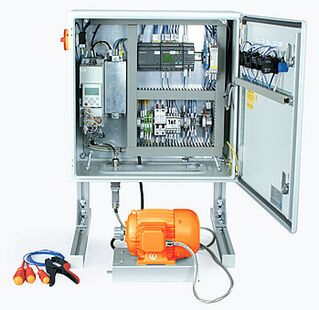

EPL 25 FREQUENCY CONVERTERS PROJECT WORK KIT

The training system conveys in practical fashion how industrial components are built and wired in a control cabinet. Using frequency converters and miniature control units, it is possible to assemble projects which are typical of industrial installations, to set their parameters and to test them.

Training objectives:

• Creating and analyzing circuit diagrams
• Electromagnetically compatible assembly and wiring of a control cabinet with industrial components
• Operating the cabinet
• Approval according to DIN EN standards
• Protective earth measurements
• Insulation measurement
• Setting parameters for frequency converters
• Programming a miniature control system using LOGO
