EEM 4.5-3 Fault simulation on electrical machines 300W

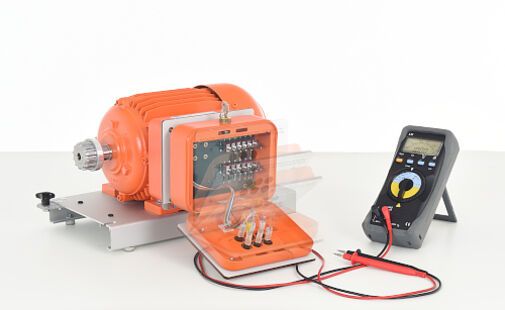

The fault simulator can be simply plugged into a three-phase asynchronous machine. Thanks to the lockable fault switches, a wide variety of typical faults can be activated. These can be found and analyzed using measuring equipment routinely found in industrial applications. Repair strategies can be derived based on the measurement results. All measurements are undertaken with the equipment de-energized.

Training contents:

• Winding breaks in coils
• Winding to winding insulation fault
• Winding to housing insulation fault
• Combination of different faults
• Fault assessment and practical repair instructions
• Proper handling of insulation meters
