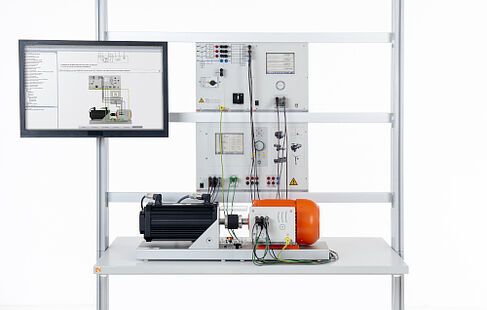

EEM 5.3-1 THREE-PHASE RELUCTANCE MACHINE 1KW

Reluctance motors are a mixture of asynchronous and synchronous motor. Thanks to the special rotor design with salient poles, the motor can start like an asynchronous motor. After a certain speed is reached, the rotor runs synchronously with the stator field. Reluctance machines are used for example in the textile industry for the synchronous de-spooling of yarn. This entails several motors being controlled by one frequency converter.

Training contents:

• Connection, wiring and putting into operation
• Reversing rotation direction
• Recording of the speed-torque operating response
