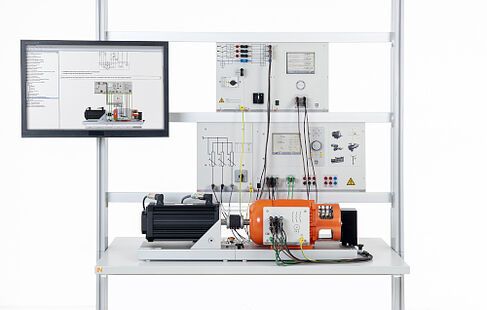

EEM 4.4-1 THREE-PHASE MOTOR WITH SLIP-RINGS (SLIP-RING ROTOR) 1KW

In contrast to squirrel-cage rotors, slip-ring rotors have a rotor equipped with wound coils. These can be connected to resistors or static converters via slip-rings. Speed adjustment is performed via these connection terminals.

Training contents:

• Connection, wiring and putting into operation
• Speed adjustment by modifying the resistance across the rotor
• Recording of the speed-torque operating response
• Operation with various load machines such as ventilators, hoisting machinery
