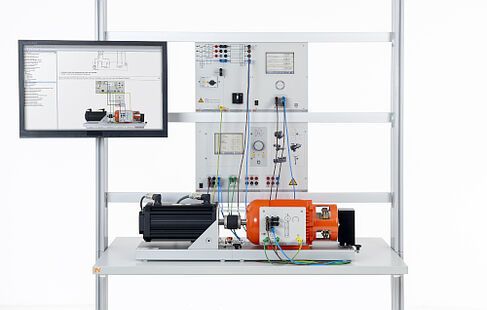

EEM 3.1-1 Universal motor 1kW

Universal motors are static converter machines and serve as drives for electrical tools and household appliances. They feature a power level of up to around 2 kW. Thanks to their simple speed control, universal motors make up a significant proportion of all AC machines.

Training contents:

Connection, wiring and putting into operation
Reversing rotation direction
Recording of the speed-torque operating response
Operation with various load machinery like e.g. ventilators
Measurement evaluation

Basic equipment set, consisting of:
1		Universal motor, 1 kW		SE2682-5E
1		Cut-out switch, 4 poles		CO3212-1W

Media:
1		Interactive Lab Assistant: AC machines 1 kW		SO2805-2B

Additionally required, dynamic servo machine test stand:
1	Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)	CO3636-6Y
1	Rubber coupling sleeve for 1kW machines	SE2662-6A
1	Coupling guard with LED lighting for 1kW machines	SE2662-7D

Power supply:
1		Three-phase supply for electrical machines		CO3212-5V

Measuring instruments:
1		Power-Multimeter		CO5127-2A

Accessories:
20	Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II	SO5126-3R
2	Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II	SO5126-3V
2	Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II	SO5126-3W
1	Set of safety measurement cables, 4mm, 31 pcs	SO5148-1L
1	Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)	ST7200-4C
1	Protected power distribution for working stations	ST8008-8N
1	Monitor holder for flat screen monitor of weight up to 15kg/33lbs	ST8010-4T
1	Keyboard adapter for flat screen monitor holders	ST8010-4G
1	Protection cover for three-level experiment trolleys	ST8010-9Y
