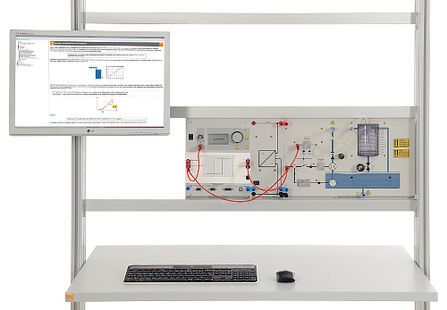

IAC 12 Closed-loop liquid level control/ flow-rate control

Training contents:

• Set-up, putting into operation and optimising an automatic liquid-level control
• Two-position controller in an integral-action controlled system of a higher order
• PI controller in a closed-loop control system
• Automatic liquid level control with disturbance variable forward feed and precontrol
• Set-up, putting into operation and optimising an automatic flow-rate control
• Operating principle, response and application of flow-rate measurement
• Investigating automatic flow-rate control with PI or PID controller and system response to disturbance and reference variable step changes
