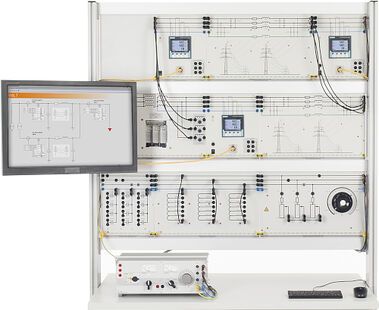

EUL 7 Controlling flow of power in meshed networks

Training contents:

• Variable transformers
• Transformer with in-phase regulation (in-phase booster)
• Transformer with regulation in quadrature (quadrature booster)
• Phase-angle-regulating transformer (phase-shifting transformer)
• Affect flow of power via two identical conductors parallel to one another
• Comparison between theory and practice
