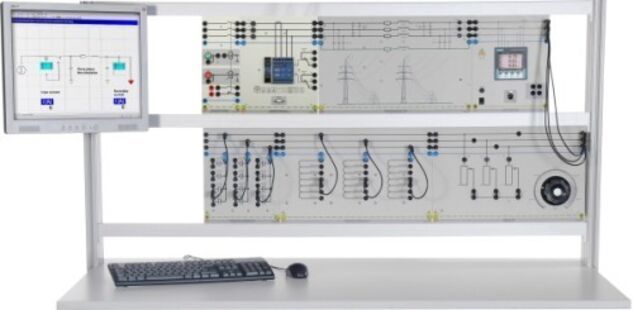

ELP 4 Directional power protection

Alpha Technical Solutions Inc.

ELP 4 Directional power protection

Training contents:

Determining rise and fall times
Implementing protection against reverse loads
Interaction with overcurrent time relays

Supplement to basic set, consisting of:
1		Power and Reverse power relay		CO3301-4G

Media:
1		Interactive Lab Assistant: Protective systems for high-voltage transmission line		SO2800-6L

Software:
1		Software SCADA Viewer		SO4001-3H
1		Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow		LM9057
1		USB 2.0 Ethernet adapter, 10/100		LM8257
1		5-Port Ethernet Switch		LM9988
1		Interface converter USB/RS485		LM9025

Power supply:
1		Adjustable 3-phase power supply, 0-450V/2A		CO3301-3Z
2		Multiple socket outlet, 6 fold, with illuminated switch		ST8010-4J

Measuring instruments:
1		Three-phase power quality meter, display and long-term memory		CO5127-1S
1		Multi13S digital multimeter		LM2330
1		Relay Test Unit		CO3301-5N

Accessories:
40		Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II		SO5126-3R
10		Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II		SO5126-3V
10		Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II		SO5126-3W
1		Set of safety measurement cables, 4mm, 31 pcs		SO5148-1L
1		Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)		ST7200-4C

Additionally recommended:
1		Monitor holder for flat screen monitor of weight up to 15kg/33lbs		ST8010-4T
1		Keyboard adapter for flat screen monitor holders		ST8010-4G
1		Display for Power Transmission equipment		ST8000-4L
1		Protection cover for three-level experiment trolleys		ST8010-9Y
