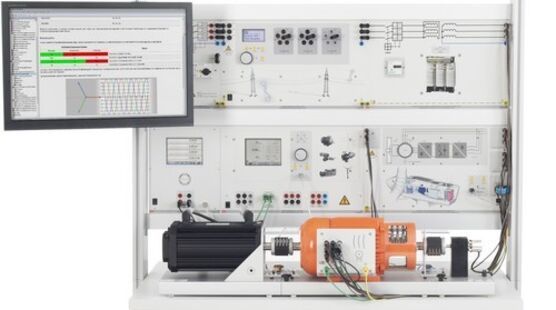

EWG 1.2 FAULT RIDE THROUGH

Alpha Technical Solutions Inc.

EWG 1.2 FAULT RIDE THROUGH

Training content:

  • Investigating the response of wind power plants to system faults

  • Exploring symmetrical fault scenarios

  • Exploring asymmetrical fault scenarios

  • Adjusting controller parameters

  • Representing variables in the dynamic range as well as with positive phase sequence and negative phase sequence

  • Compensation for the negative sequence components

Supplementary Set comprising:
1
Dynamic grid fault simulator
Dynamic grid fault simulatorCO3208-3C
Media:
1
Interactive Lab Assistant: Fault Ride-Through of wind power plants
Interactive Lab Assistant: Fault Ride-Through of wind power plantsSO2800-3S
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)CO3636-6Y
2
Rubber coupling sleeve for 1kW machines
Rubber coupling sleeve for 1kW machinesSE2662-6A
2
Coupling guard with LED lighting for 1kW machines
Coupling guard with LED lighting for 1kW machinesSE2662-7D
Media:
1
Interactive Lab Assistant: Wind power plants with DFIG
Interactive Lab Assistant: Wind power plants with DFIGSO2800-3R
Power supply:
1
Three-phase supply for electrical machines
Three-phase supply for electrical machinesCO3212-5V
Measuring instruments:
1
Power-Multimeter
Power-MultimeterCO5127-2A
1
Three-phase power quality meter, display and long-term memory
Three-phase power quality meter, display and long-term memoryCO5127-1S
Software:
1
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellowLM9057
1
USB 2.0 Ethernet adapter, 10/100
USB 2.0 Ethernet adapter, 10/100LM8257
1
5-Port Ethernet Switch
5-Port Ethernet SwitchLM9988
Accessories:
1
Power switch module
Power switch moduleCO3301-5P
40
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT IISO5126-3R
4
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT IISO5126-3W
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT IISO5126-3V
1
Set of safety measurement cables, 4mm, 31 pcs
Set of safety measurement cables, 4mm, 31 pcsSO5148-1L
1
Set of safety measurement cables, 4mm, 10m, 5 pcs, incl. fastening
Set of safety measurement cables, 4mm, 10m, 5 pcs, incl. fasteningSO5148-1Z
1
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)ST7200-4C
1
Protected power distribution for working stations
Protected power distribution for working stationsST8008-8N
Additionally recommended:
1
Display for Wind Power Plants equipment
Display for Wind Power Plants equipmentST8000-4D
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
Monitor holder for flat screen monitor of weight up to 15kg/33lbsST8010-4T
1
Keyboard adapter for flat screen monitor holders
Keyboard adapter for flat screen monitor holdersST8010-4G
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleysST8010-9Y
