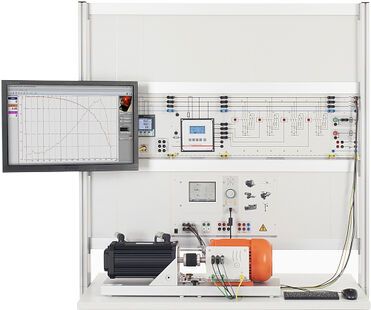

EUC 3 MANUAL AND AUTOMATIC COMPENSATION OF REACTIVE POWER
Training contents:
- Operating an asynchronous machine and recording its characteristic parameters
- Calculating parameters for compensation capacitors
- Compensation using various capacitors
- Determining stage power
- Manual compensation of reactive power
- Automatic identification of a reactive power controller‘s connections
- Automatic compensation of reactive power
| Supplement to basic set, consisting of: | ||||
|---|---|---|---|---|
| 1 |  | Reactive power controller | CO3301-5C | |
| 1 |  | Switchable Capacitor Battery | CO3301-5E | |
| Measuring instruments: | ||||
|---|---|---|---|---|
| 1 |  | Three-phase power quality meter, display and long-term memory | CO5127-1S | |
| Media: | ||||
|---|---|---|---|---|
| 1 |  | Interactive Lab Assistant: Energy management | SO2800-3Y | |
| Software: | ||||
|---|---|---|---|---|
| 1 |  | Software SCADA Viewer | SO4001-3H | |
| 1 |  | Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow | LM9057 | |
| 1 |  | USB 2.0 Ethernet adapter, 10/100 | LM8257 | |
| 1 |  | 5-Port Ethernet Switch | LM9988 | |
| Accessories: | ||||
|---|---|---|---|---|
| 1 |  | Power switch module | CO3301-5P | |
| 40 |  | Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II | SO5126-3R | |
| 2 |  | Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II | SO5126-3V | |
| 2 |  | Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II | SO5126-3W | |
| 1 |  | Set of safety measurement cables, 4mm, 31 pcs | SO5148-1L | |
| 1 |  | Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm) | ST7200-4C | |
| 1 |  | Protected power distribution for working stations | ST8008-8N | |
| Additionally recommended: | ||||
|---|---|---|---|---|
| 1 |  | Monitor holder for flat screen monitor of weight up to 15kg/33lbs | ST8010-4T | |
| 1 |  | Keyboard adapter for flat screen monitor holders | ST8010-4G | |
| 1 |  | Display for Energy Management equipment | ST8000-4C | |
| 1 |  | Protection cover for three-level experiment trolleys | ST8010-9Y | |
