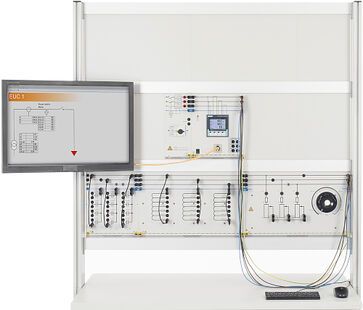

EUC 1 COMPLEX LOADS, POWER CONSUMPTION MEASUREMENT AND PEAK LOAD MONITORING

Training contents:

• Three-phase consumers with star and delta connections (R, L, C, RL, RC and RLC loads)
• Measurement with active and reactive energy meters:

        – for symmetric and asymmetric RL loads

        – in the event of a phase failure

        – in the event of over-compensation (RC load)

        – for active loads

        – in the event of energy-flow reversal

• Determination of the first and second power maxima
• Determination of the power maximum in the event of an asymmetric load
• Recording of load profiles
