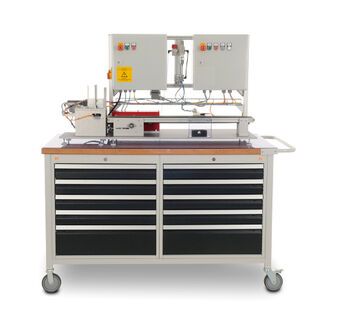

MEC 11 Modular conveyor belt technology training system

Various didactically designed assemblies are combined in this industry-oriented conveyor system to form a comprehensive training system. The spur/bevel gear can be seen through an acrylic viewing window. In addition, the three-phase motor can be flanged directly to the gearbox. Together with a conveyor belt, a magazine and a slide valve module as well as a control cabinet and a maintenance unit with manual valve, the system forms a comprehensive training unit for mechanics in production technology.

Learning content

– Basics of electrical engineering (safety extra-low voltage)
– Install the controller in the control cabinet as VPS
– Mounting pneumatic components
– Select and mount components (sensors, valves, cylinders)
– Implement your own projects

Basic equipment set, consisting of:
1		Training system Belt system		SE2905-4M
1		Gearing accessories		SE2905-4L

Media:
1		Interactive Lab Assistant: Conveyer Belt Technology		SO2801-7B
1		Interactive Lab Assistant: Gearing systems		SO2801-7A

Accessories:
1	SybaWork mobile work trolley, 1500x750x879, 10 drawers, table top 40mm	ST8070-6N
1	Automotive tool set 6, 1/4″ socket insert set (71 parts), inlay size 300 x 600mm	ST8090-3L
1	Automotive tool set 7, screwdriver set (14 parts), inlay size 300 x 600 mm	ST8090-3N
1	Automotive tool set 9, pliers set (10 parts), inlay size 300 x 600 mm	ST8090-3S
1	Metalworking tool set 3, punch tools (22 tools), inlay size 300 x 600 mm	ST8090-5E
1	Metalworking tool set 7, measuring tools I (6 tools), inlay size 300 x 600 mm	ST8090-5N
1	Metalworking tool set 8, measuring tools II (14 tools), inlay size 300 x 600 mm	ST8090-5Q
1	Metalworking tool set 9, measuring tools III (21 tools), inlay size 300 x 600 mm	ST8090-5S
1	Flax hackle rubber inlay, oil proof, for drawer inside dimensions 600 x 600 mm	ST8070-9E
