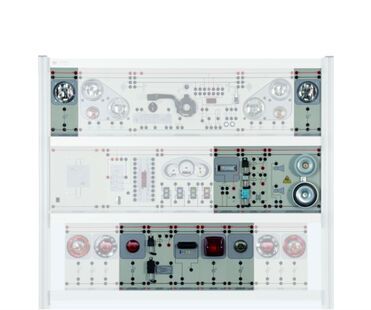

ALC 1.2 Extended basic lighting with horn

This system is used to cover the topics involving auxiliary headlights and signalling systems – the latter is obligatory in every vehicle and thus enjoys special consideration in training programs. What is of interest here is that control of these components can vary depending on the vehicle. For that reason, instructors can only profit from a system that allows them to become familiar with different versions of these right there in the classroom.

Supplement to basic set, consisting of:
2
Auxiliary lamp
Auxiliary lampCO3216-2B
1
Rear fog lamp
Rear fog lampCO3216-2E
1
Reversing lamp
Reversing lampCO3216-2F
1
Interior lighting
Interior lightingCO3216-2U
1
Relay unit 2, auxiliary lighting, relay1x c.o., time-delay relay
Relay unit 2, auxiliary lighting, relay1x c.o., time-delay relayCO3216-2R
1
Extra brake light
Extra brake lightCO3216-2W
1
Standard & power horn (Normal & Supertone)
Standard & power horn (Normal & Supertone)CO3216-3B
1
Licence plate Illumination
Licence plate IlluminationCO3216-3A
Power supply:
1
Power supply, 13.5 V, 45 A
Power supply, 13.5 V, 45 ACO3223-1C
Media:
1
Interactive Lab Assistant: Automotive Lighting
Interactive Lab Assistant: Automotive LightingSO2803-1B
Measuring instruments:
3
Adapter BNC/4 mm safety sockets, insulated
Adapter BNC/4 mm safety sockets, insulatedLM9019
1
Test lamp
Test lampLM8205
1
Multi 18 digital multimeter
Multi 18 digital multimeterLM2331
1
Digital dual trace storage oscilloscope w. colour display, incl. probes 30 MHz
Digital dual trace storage oscilloscope w. colour display, incl. probes 30 MHzLM6210
Accessories:
2
Set of circuit breakers for vehicles (10A/15A)
Set of circuit breakers for vehicles (10A/15A)SO3216-8R
1
Set of 4-mm measurement leads with safety connection leads for ALC (complete)
Set of 4-mm measurement leads with safety connection leads for ALC (complete)SO3216-9G
1
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets, 49"x28"x79" WxDxH (1250x700x1995mm)
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets, 49″x28″x79″ WxDxH (1250x700x1995mm)ST7200-4C
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
Monitor holder for flat screen monitor of weight up to 15kg/33lbsST8010-4T
Additionally recommended:
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleysST8010-9Y
1
Trolley for measurement leads (max. length 100cm), for up to 320 (2x 160) measurement leads (100cm)
Trolley for measurement leads (max. length 100cm), for up to 320 (2x 160) measurement leads (100cm)ST8003-8C
