ESE 1.1 Investigation of solar modules

Alpha Technical Solutions Inc.

ESE 1.1 Investigation of solar modules

Training content:

Recording daily and annual solar irradiance
Exploring optimum alignment of solar modules (boosting energy yield)
Recording solar module characteristics

Supplementary Set comprising:
1		Power-Multimeter		CO5127-2A

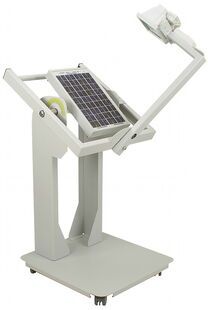

1		Solar module with solar altitude emulator		CO3208-1Y
1		Load unit 1kOhm, 500W		CO3208-1J

Power supply:
1		Three-phase supply for electrical machines		CO3212-5V

Measuring instruments:
1		Three-phase power quality meter, display and long-term memory		CO5127-1S

Software:
1		Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow		LM9057
1		USB 2.0 Ethernet adapter, 10/100		LM8257
1		5-Port Ethernet Switch		LM9988

Media:
1		Interactive Lab Assistant: Smart Energies – Residential PV system with storage		SO2800-6D

Accessories:
12		Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II		SO5126-3R
5		Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II		SO5126-3W
5		Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II		SO5126-3V
1		Set of safety measurement cables, 4mm, 31 pcs		SO5148-1L
1		Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)		ST7200-4C

Additionally recommended:
1		Monitor holder for flat screen monitor of weight up to 15kg/33lbs		ST8010-4T
1		Keyboard adapter for flat screen monitor holders		ST8010-4G
1		Display for Advanced Photovoltaics equipment		CO3301-7N
1		Protection cover for three-level experiment trolleys		ST8010-9Y
