EIT 3.2 Efficient Lighting using DALI

Alpha Technical Solutions Inc.

EIT 3.2 Efficient Lighting using DALI

Training content:

  • Addressing and commissioning a DALI system
  • Customised configuration of user interfaces
  • Creation of group devices
  • Dimming and switching of group devices and single devices
  • Tunable White and RGB light management
  • Call up and storage of scenarios
  • Regulation of constant light output
  • Measurement and visualization of temperature and motion

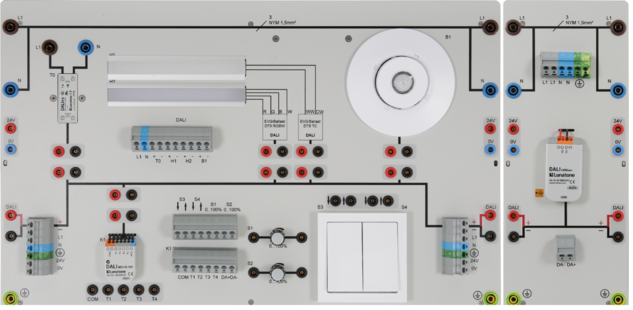

Basic equipment set, consisting of:
1
Installation board DALI USB controller
Installation board DALI USB controllerCO3109-8Q
1
Installation board DALI applications
Installation board DALI applicationsCO3109-8R


Alternative controller

1
Installation board DALI WiFi controller with touch display
Installation board DALI WiFi controller with touch displayCO3109-8S
Media:
1
Interactive Lab Assistant: DALI - Intelligentes Beleuchtungsmanagement
Interactive Lab Assistant: DALI – Intelligentes BeleuchtungsmanagementSO2801-4L
Measuring instruments:
1
Power-Multimeter
Power-MultimeterCO5127-2A
Power supply:
1
Power supply single phase with switch, circuit breaker and Schuko socket
Power supply single phase with switch, circuit breaker and Schuko socketCO3111-1A
Accessories:
3
Safety measurement cable 4mm , 25cm, brown , 600 V CAT III ' 1000 V, CAT II / 32A
Safety measurement cable 4mm , 25cm, brown , 600 V CAT III ‘ 1000 V, CAT II / 32ASO5126-8D
3
Safety measurement cable 4mm, 25cm/10", blue, 600V CAT III ~1000V CAT II / 32A
Safety measurement cable 4mm, 25cm/10″, blue, 600V CAT III ~1000V CAT II / 32ASO5126-8E
1
Safety measurement cable 4mm , 25 cm, green/yellow, 600 V CAT III ' 1000 V, CAT II / 32
Safety measurement cable 4mm , 25 cm, green/yellow, 600 V CAT III ‘ 1000 V, CAT II / 32SO5126-8G
3
Safety measurement cable 4mm, 50cm/20", black, 600V CAT III ~1000V CAT II / 32A
Safety measurement cable 4mm, 50cm/20″, black, 600V CAT III ~1000V CAT II / 32ASO5126-8L
1
2mm safety measurement cable, 60cm, black , 10A
2mm safety measurement cable, 60cm, black , 10ASO5126-7R
1
2mm safety measurement cable, 60cm, red, 10A
2mm safety measurement cable, 60cm, red, 10ASO5126-7P
3
Adapter safety measuring cable 4/2mm, 150cm, black, 600V CAT II
Adapter safety measuring cable 4/2mm, 150cm, black, 600V CAT IISO5126-6N
4
Safety connecting plug 4mm with tap (2x), yellow, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), yellow, 1000V/32A CAT IISO5126-3Z
1
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT IISO5126-3W
8
Safety connecting plug 4mm with tap (2x), brown, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), brown, 1000V/32A CAT IISO5126-3S
3
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT IISO5126-3V
4
2mm safety measurement cable, 3cm, black  , 10A, stackable plugs
2mm safety measurement cable, 3cm, black , 10A, stackable plugsSO5126-7X
1
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)ST7200-4C
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
Monitor holder for flat screen monitor of weight up to 15kg/33lbsST8010-4T
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleysST8010-9Y
