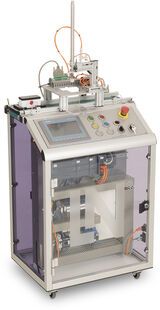

IMU with IMS 7 Handling subsystem

On the Mechatronic Unit there is a workpiece carrier, with mounted and tested workpiece. A handling station is located above the center of the conveyor. The workpiece carrier is stopped at the removal position. The handling device lifts the workpiece and transports it to a deposit position. The empty workpiece carrier moves to the end of the conveyor belt, where it is taken over by the next unit.
