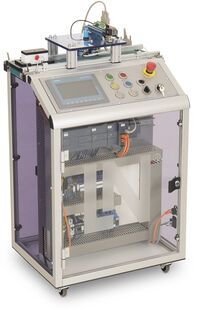

IMU with IMS 6 Testing subsystem

A workpiece carrier with a machined workpiece is located on the Mechatronic Unit. A stopper positions the workpiece at the inspection sensors. The sensors distinguish the workpieces with regard to color, material. The test data is stored for further processing. After the inspection, the workpiece carrier moves to the end of the conveyor belt, where it is taken over by the next unit.
