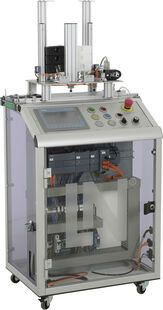

IMU with IMS 3 subsystem Separation with double magazine

A workpiece carrier is located on the Mechatronic Unit. The carrier is positioned under one of the two shafts for the gravity-feed magazine. The sorting station has two magazines that accommodate six bottom pieces. One piece is selected and placed in the carrier. The carrier and its load are then conveyed to the end of the belt to be passed on to the next sub-system.
