IMU 1 Industrial Mechatronic Unit

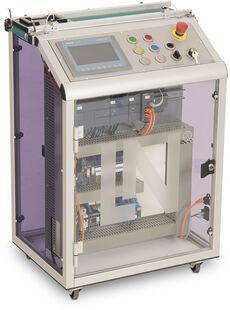

The mechatronic unit is the connecting piece of all subsystems and thus the central component of the entire production plant. In production plants, the units are separate modules that can be expanded with subsystems as required. Basic processes such as “positioning” and “generating controlled movements” can already be demonstrated with this system.

The integrated touch panel allows all functions to be visually displayed individually.

Learning objectives Mechatronic Unit

• Understand the operation and function of the sensors
• Generating controlled movements in an axis
• Incremental positioning of a workpiece carrier
• Interlocking of forward and backward movement
• Speed control
• Configuration IO-Link
• Touch panel programming
