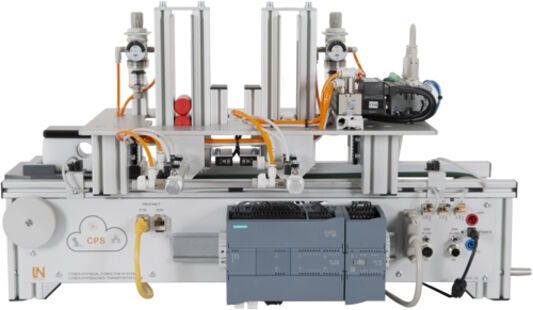

IMS IMS 5d Processing with double magazine

There is a workpiece carrier with a completely assembled two-part workpiece on the conveyor belt, (top and bottom part). The workpiece carrier is positioned in the processing installation. The workpiece is attached for processing. A bolt from one of the two magazine drops is pressed into the bore holds of the workpiece. The loaded workpiece carrier proceeds to the end of the conveyor belt where it is to be taken by the next subsystem.

Training contents:

• Basic notes on conducting experiments
• Detailed experiment description
• Basic notes on control sequences
• Programming the sequential process control
