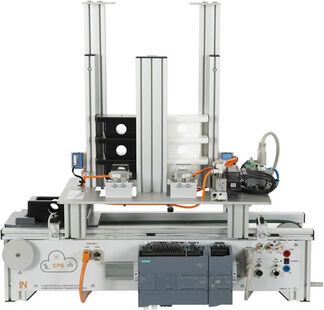

IMS IMS 4d Assembly with double magazine

A workpiece carrier is located on the conveyor belt. The carrier is positioned under one of the shafts for the gravity-feed magazine. The assembly station has two magazines that accommodate ten bottom pieces. One piece is selected and placed in the carrier. The carrier and its load are then conveyed to the end of the belt to be passed on to the next sub-system.

Training contents:

Basic notes on conducting experiments
Detailed experiment description
Basic notes on control sequences
Programming the sequential process control

Equipment set comprising the following:
1	Cyber physical conveyor system with PLC	LM9515
1	Assembly double station	LM9646
1	IMS displacement measurement module	LM9677
1	Symmetrical workpiece transport pallet	LM9532
2	Workpiece, top section, white	LM9521
2	Workpiece, top section, black	LM9522
1	Workpiece, bottom section, white	LM9524

Accessories:
1		DC power supply 24 V/5 A for IMS conveyor belts		LM9672
1		Interface cable 25-pin, Sub-D socket / plug 1m		LM9066

Media:
1	Interactive Lab Assistant: IMS 1 Cyber Physical Conveyor Belt System	SO2805-5H
1	Interactive Lab Assistant: IMS X Mechatronic Basic Stations	SO2805-5X
1	QuickChart IMS 1.5 Cyber-physical conveyor belt system	SO6200-2P
1	QuickChart IMS 4d Mechatronics Assembly double station	SO6200-2R

Additionally recommended:
1		Compressor, low-noise	SE2902-9L
1		Tubing and accessory set for mechatronics systems	LM9571
1		Set of Allen keys	LM9716
1		Mechatronics experiment trolley with 2 level frame 1200x760x900mm WxHxDxD	ST7200-3T
1		Monitor holder for flat screen monitor of weight up to (10kg / 22lbs)	ST8010-4K
1		Protective cover for 1200mm wide IMS experiment trolleys with training panel	ST8010-8L
	In areas where there are high levels of humidity the membrane dryer with water trap should be used to avoid… more
1		IDG3 membrane dryer with rapid coupling and filter AF20 with water trap	LM9671
