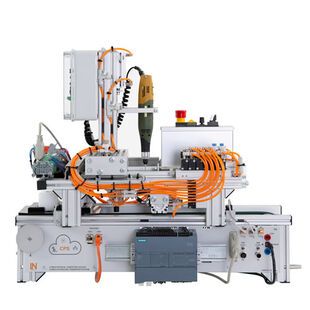

IMS 13 Drilling and milling sub-system

A workpiece carrier with the bottom part of a workpiece is placed on the conveyor belt. The drilling and cutting station has a controllable cutting head which reams out the internal contour of the workpiece section. The cutting head can be moved in three axes in order to work on the component. Afterwards the workpiece carrier with its workpiece is moved to the end of the conveyor belt to be passed on to the next sub-system.

Training contents:

Assembly, set-up and testing of pneumatic cylinders and valves
Introduction to sub-systems for workpiece substructures
Defining processes for sorting
Programming of production sequences in manual and automatic modes

Equipment set comprising the following:
1	Cyber physical conveyor system with PLC	LM9515
1	Drilling and milling station	LM9688
1	IMS displacement measurement module	LM9677
1	Symmetrical workpiece transport pallet	LM9532
1	Workpiece, bottom section, white	LM9524
1	Workpiece, bottom section, black	LM9525

Accessories:
1		DC power supply 24 V/5 A for IMS conveyor belts		LM9672
1		Interface cable 25-pin, Sub-D socket / plug 1m		LM9066

Media:
1	Interactive Lab Assistant: IMS 1 Cyber Physical Conveyor Belt System	SO2805-5H
1	Interactive Lab Assistant: IMS 13 Drilling and milling station	SO2800-5L
1	QuickChart IMS 1.5 Cyber-physical conveyor belt system	SO6200-2P
1	QuickChart IMS13 – Drilling and milling station	SO6200-1X

Additionally recommended:
1		Compressor, low-noise	SE2902-9L
1		Tubing and accessory set for mechatronics systems	LM9571
1		Set of Allen keys	LM9716
1		Mechatronics experiment trolley with 2 level frame 1200x760x900mm WxHxDxD	ST7200-3T
1		Monitor holder for flat screen monitor of weight up to (10kg / 22lbs)	ST8010-4K
1		Protective cover for 1200mm wide IMS experiment trolleys with training panel	ST8010-8L
	In areas where there are high levels of humidity the membrane dryer with water trap should be used to avoid… more
1		IDG3 membrane dryer with rapid coupling and filter AF20 with water trap	LM9671
