CIO 1 IO-Link in manufacturing

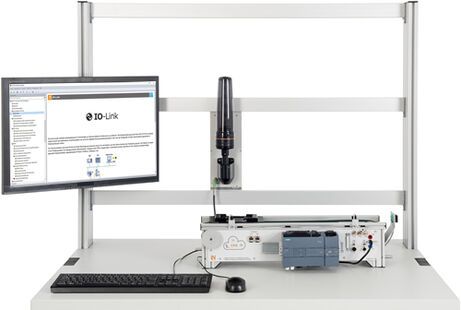

Learn about the functions of IO-Link using practical examples. Up to four IO-Link stations can be connected to the IO-Link master module integrated in the transport system. The transport system also includes an IO-Link RFID read/write head. Writing and reading on RFID tags via IO-Link is to be learned here. Furthermore, an IO-Link ultrasonic sensor is connected via which the workpiece carrier is positioned on the transport system. The equipment is completed by an IO-Link LED signal tower. This is to visualize the current operating states of the transport system in color.

Training contents:

• Basics IO-Link
• Transport system with IO-Link master
• Configuration in the TIA Portal
• IO-Link RFID
  •     Configuration
  •     Project Packet sorting
  •     Project statistics management
• IO-Link Ultrasonic Sensor
  •     Project Positioning
  •     Project Segmentation
  •     Project Diagnosis
• IO-Link signal lamp
  •     Project Status display
