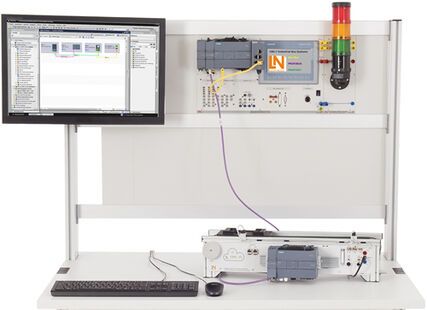

CBS 2 Industrial bus systems

It is vital to know about the most important industrial bus systems. With this compact set, you can learn about project planning for three different bus systems and how they are used. It is not only the extensive theoretical background but also the detailed experiment instructions which offer a thorough exploration of these bus systems.

Training contents:

Fundamentals of TIA Portal
Programming of a conveyor using I/O
Fundamentals of an AS-i bus
Programming of a signal tower via AS-i
Fundamentals of PROFIBUS
Programming of a conveyor using PROFIBUS
Fundamentals of PROFINET
Programming of a conveyor using PROFINET

Equipment set comprising the following:
1	Cyber physical conveyor system with PLC	LM9515
1	Communications module CM1242-5 Profibus Slave for S7-1200	CO3713-8X
1	AS-i indicator column	CO3715-5M

S7-1200 PLC control system with accessories:
1	SIMATIC S7-1215C + KTP700	CO3713-8T
1	CM1243-5 communications module for connection of S7-1200 to PROFIBUS	CO3713-8N
1	CM1243-2 communications module for connection of S7-1200 to AS-i bus	CO3713-8P
2	Safety connecting plug 4mm with tap (2x), yellow, 1000V/32A CAT II	SO5126-3Z

Media:
1	Interactive Lab Assistant: CBS 2 Industrial Bus Systems	SO2805-5W
1	QuickChart IMS 1.5 Cyber-physical conveyor belt system	SO6200-2P
1	QuickChart Siemens PLC S7-1215C Board	SO6200-5M

Accessories:
1	Symmetrical workpiece transport pallet	LM9532
1	Connection cable for PROFIBUS, 1.5m; 2xConnection plug	LM9193
1	Adapter cable 9/25-pin male/male for IMS1 with memory card for S7-1200	LM9697
2	Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II	SO5126-3U
2	Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II	SO5126-3V
2	Safety connecting plug 4mm with tap (2x), yellow, 1000V/32A CAT II	SO5126-3Z
1	Safety measurement cable 4mm, 150cm, red, 600 V CAT III ~ 1000 V, CAT II / 32A	SO5126-9F
1	Safety measurement cable 4mm, 150cm/60″, blue, 600V CAT III ~1000V CAT II / 32A	SO5126-9K
